• Ramset 34CLIP 3/4" Angle Clip .125" x .300"
1 1

ITW Ramset Red Head

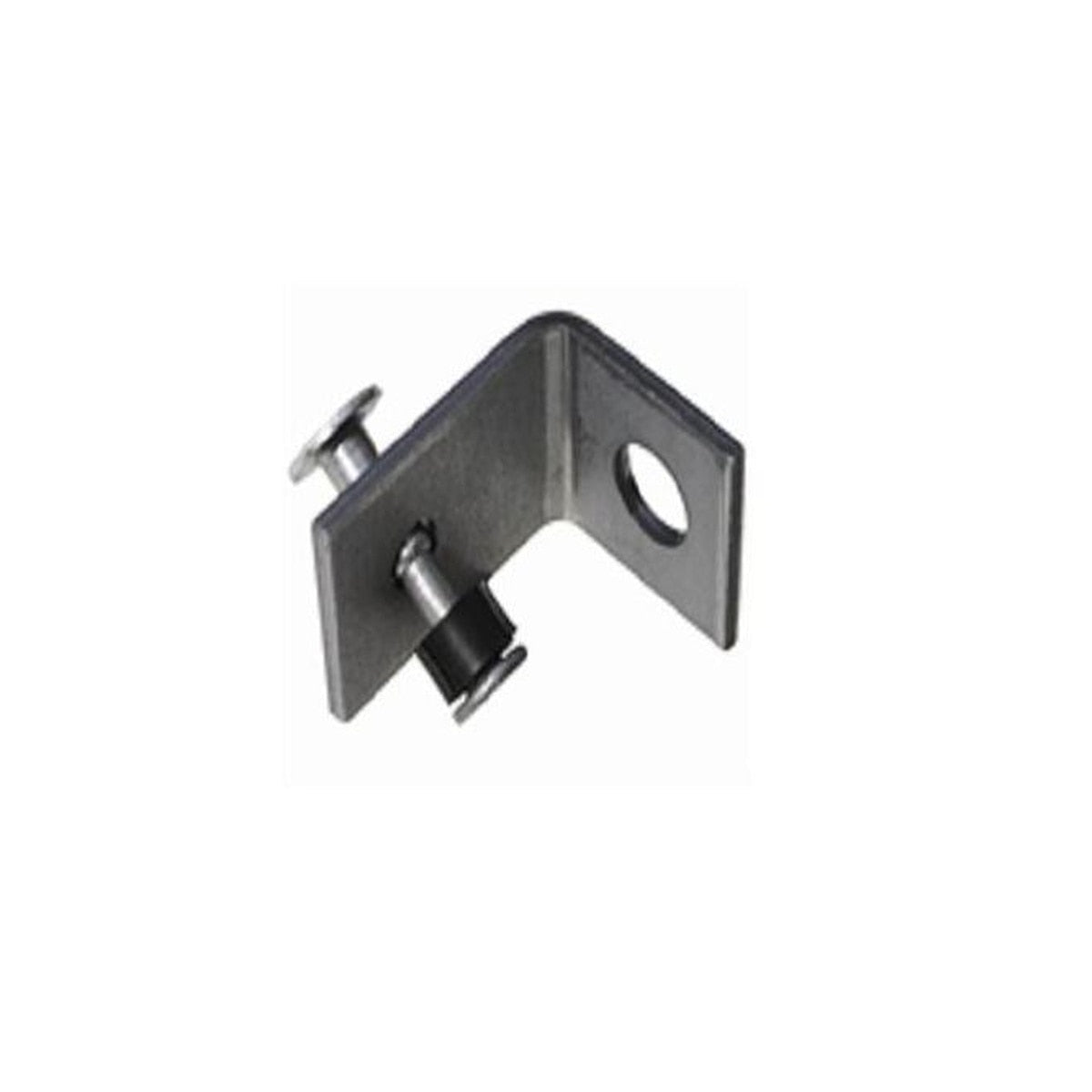

Ramset 34CLIP 3/4" Angle Clip .125" x .300"

Ramset 34CLIP 3/4" Angle Clip .125" x .300"

$2,165.88 USD
$2,165.88 USD $2,165.88 USD
Sale Sold out

ITW Ramset Red Head 34CLIP Description

The ITW Ramset Red Head 34CLIP is a 3/4 in. angle clip sized 0.125 in. x 0.300 in. It is designed for use with 0.104 in. and 0.125 in. shank diameters, requires a minimum penetration of 5/8 in., and is supplied 100 per box with published allowable tension and shear loads for 3000 PSI lightweight, 4000 PSI, and 6000 PSI concrete.

ITW Ramset Red Head 34CLIP Includes

  • (100) 3/4 in. Angle Clips

ITW Ramset Red Head 34CLIP Features

  • 3/4 in. angle clip with 0.125 in. x 0.300 in. dimensions
  • Compatible with 0.104 in. and 0.125 in. shank diameters
  • Requires 5/8 in. minimum penetration
  • Published allowable tension and shear loads for 3000 PSI lightweight, 4000 PSI, and 6000 PSI concrete
  • Packaged 100 per box

ITW Ramset Red Head 34CLIP Specifications

Product Type Angle Clip
Size 3/4 in.
Dimensions 0.125 in. x 0.300 in.
Shank Diameter 0.104/0.125 in.
Minimum Penetration 5/8 in.
Allowable Load at 4000 PSI Tension: 60 - 357, Shear: 117 - 587
Allowable Load at 6000 PSI Tension: 107 - 533, Shear: 191 - 957
Allowable Load at 3000 PSI Lightweight Tension: 54 - 269, Shear: 230 - 1150
Packaging 100 per box
